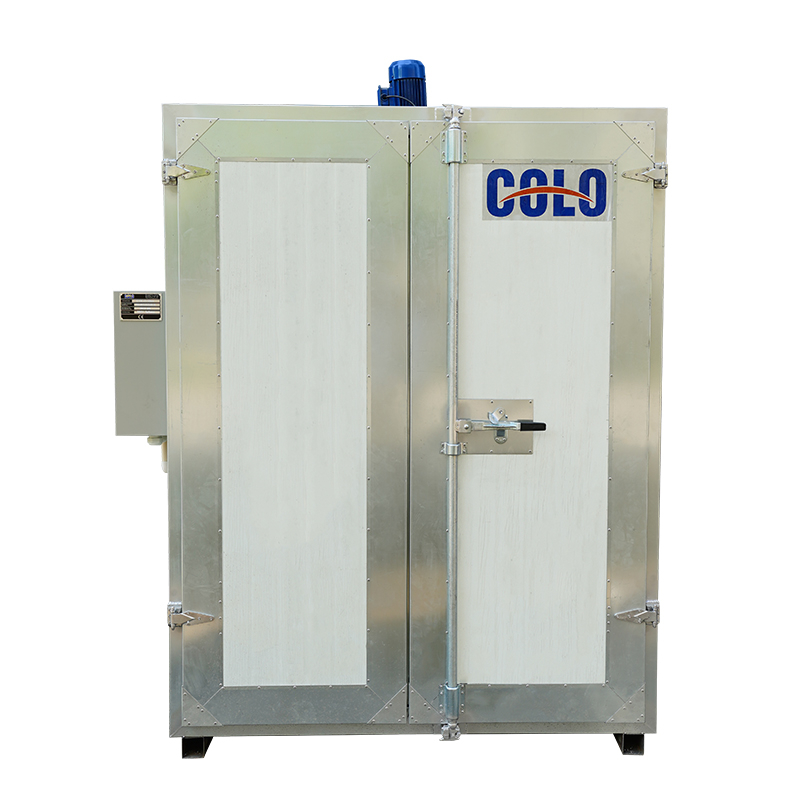

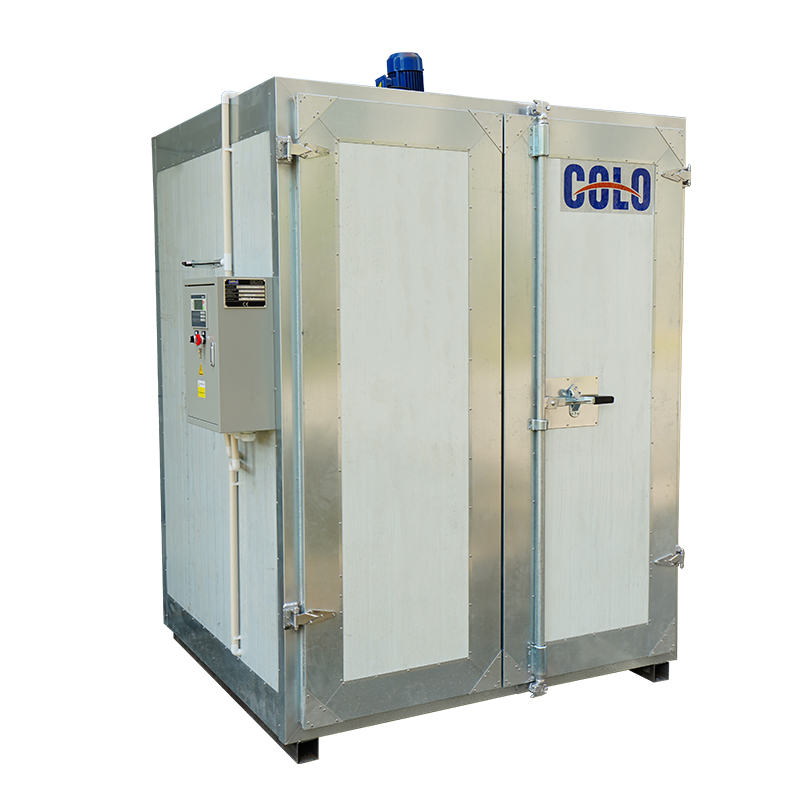

COLO-1864 Powder Coating Oven

loading

COLO-1864 Powder Coating Oven COLO-1864 Powder Coating Oven
COLO-1864 Professional Powder Coating Oven COLO-1864 Professional Powder Coating Oven
COLO-1864 Powder Coating Oven COLO-1864 Powder Coating Oven
COLO-1864 Powder Coating Oven COLO-1864 Powder Coating Oven

COLO-1864 Professional Powder Coating Oven

$ 5180

SKU:
Availability:
Quantity:

  • COLO-1864

  • COLO


100mm thick insulation materials, durable steel wall, precise PLC controlled heating process, a pair of loading trolley, optimal airflow, consistent curing temperature, makes this oven professional for powder coating jobs, as well as reliable quality and long service life.

FOR FREIGHT COST AND SHIPPING DETAILS PLS CONTACT US.
Product Description

COLO-1864 Powder Coating Oven Excellent Features

  • Electric heating source, features simple operation, less maintenance, and environmetal-friendly.

  • Efficiently raise and maintain the required temperature, saving time and energy.

  • The optimal airflow throughout oven enclosure creates an even, constant cure for your parts.

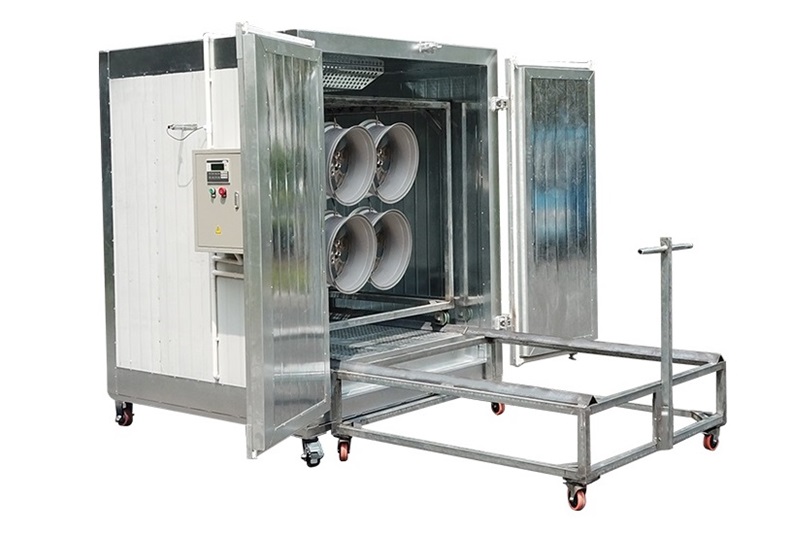

  • Allows holding 8 pcs of alloy wheels each turn or a batch of small or medium sized workparts.

COLO-1864 Powder Coating Oven


COLO-1864 Powder Coating Oven Configurations

  • 0.75kw circulation fan circles the hot air to warm the powder coating oven interior, minimize temperature difference and guarantee uniform-heated chamber.

  • The PLC control system offers user-friendly interface for users to set the required temperature and heating time accurately.

  • COLO powder coating oven utilizes a sandwich panel design. Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.

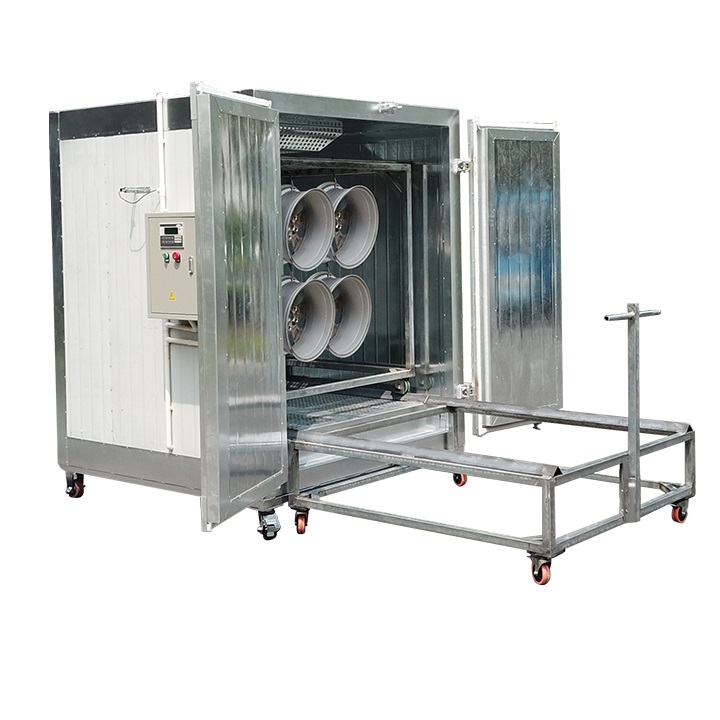

  • Standardly equipped with two carts: internal one and external one. It is a superior solution that allows batch loading of workparts as well as carrying heavy elements using a small amount of force.

professional powder coating oven

powder coating oven



COLO-1864 Powder Coating Oven Specifications

Model COLO-1864
Working dimensions Width1600 x Height1800 x Depth1400 mm
Overall dimensions

Width1900 x Height2200 x Depth1700 mm
Power supply electric 18kw
Voltage 380V/220V (Custom Voltage Available)
Frequency 50-60hz
Warm-up time 15-30 min. (180° C)
Temperature stability < ± 3-5°C
Temperature max 250° C
Ventilation performance 805-1677m3/h
Motor power 0.75kw
Circulation/ Air flowVertical Variable through holes on the walls
Transportation Trolley
Warranty 12 months


COLO-1864 Powder Coating Oven Applications
