COLO-1688 Powder Coating Oven

$ 2430


SKU:
Availability:

Quantity:

Buy Now Add to Cart

Model:
COLO-1688
Brand:
COLO

NOTE: IF YOU NEED FREIGHT COST AND SHIPPING DETAILS, PLEASE CONTACT US

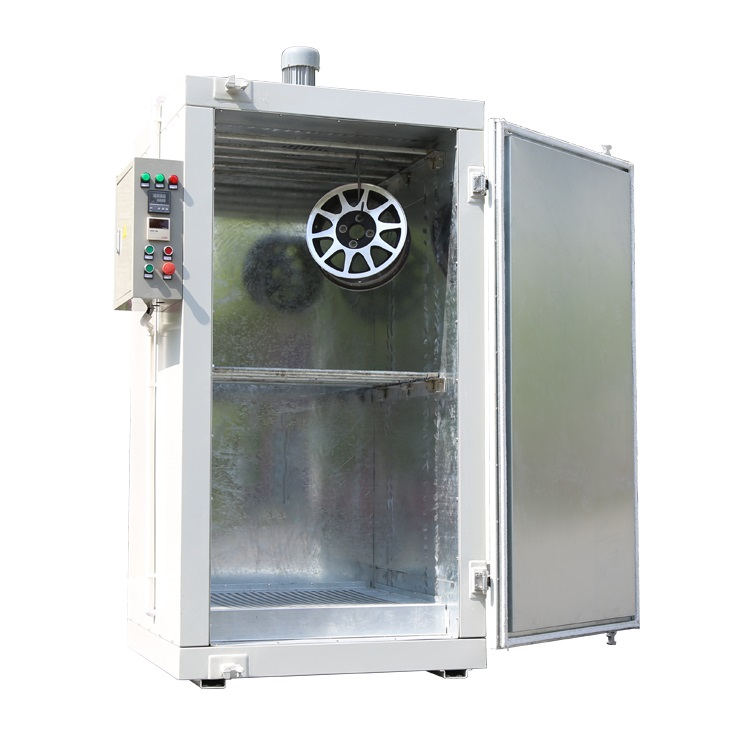

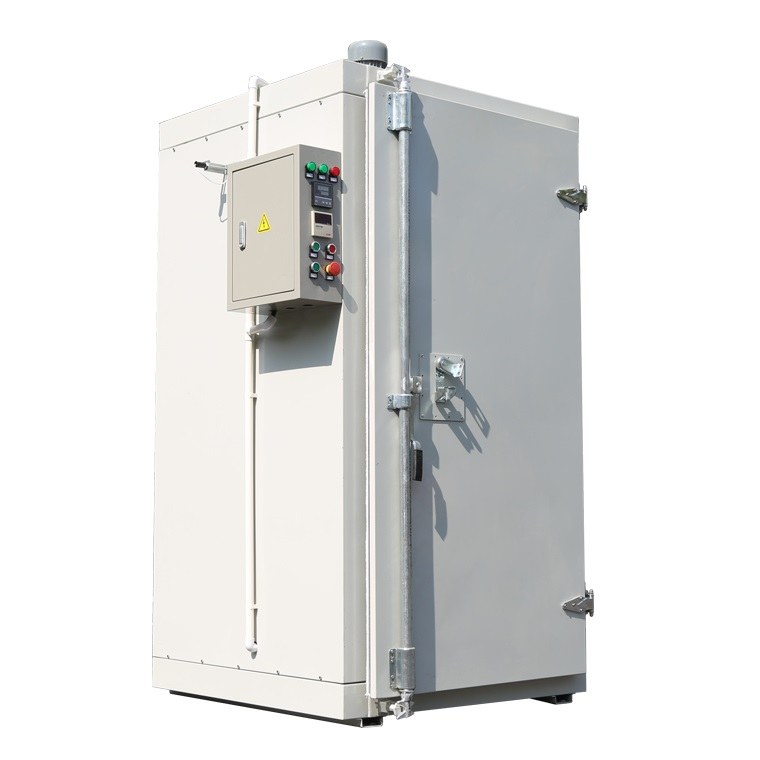

COLO-1688 Powder Coating Oven Features

Electric heated powder coating oven is simple to operate, reduces rework, saves you time.
Space-saving and cost-saving, suitable for powder coating beginners or small workshop.
Allows holding 4 pcs of alloy wheels each turn or a certailn quantity of small accessories.
Electric controller allows to easily set temperature & time as well as displays actual inside temperature.
0.55kw circulating fan provides excellent heating uniformity for consistent, high quality curing results.
High-density 100mm rock wool insulation materials keeps balanced temperature inside the oven.
Internal space is divided into 2 layers and 5 rails per lary for hanging coated workparts.

COLO-1688 Powder Coating Oven Specifications

Worksize Dimension	Width1000 Height1600 Depth845 mm
Overall Dimension	Width1250 * Height2085 * Depth1050 mm
Power supply	Electric/ 6kw（1.5kw Heating Tube x 4pcs）
Voltage/Frequency	110V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3-5°C
Temperature	Max. 250° C
Ventilation performance	805-1677m3/h
Fan power	0.55kw
Circulation/ Air flow	Vertical, Variable through holes on the walls

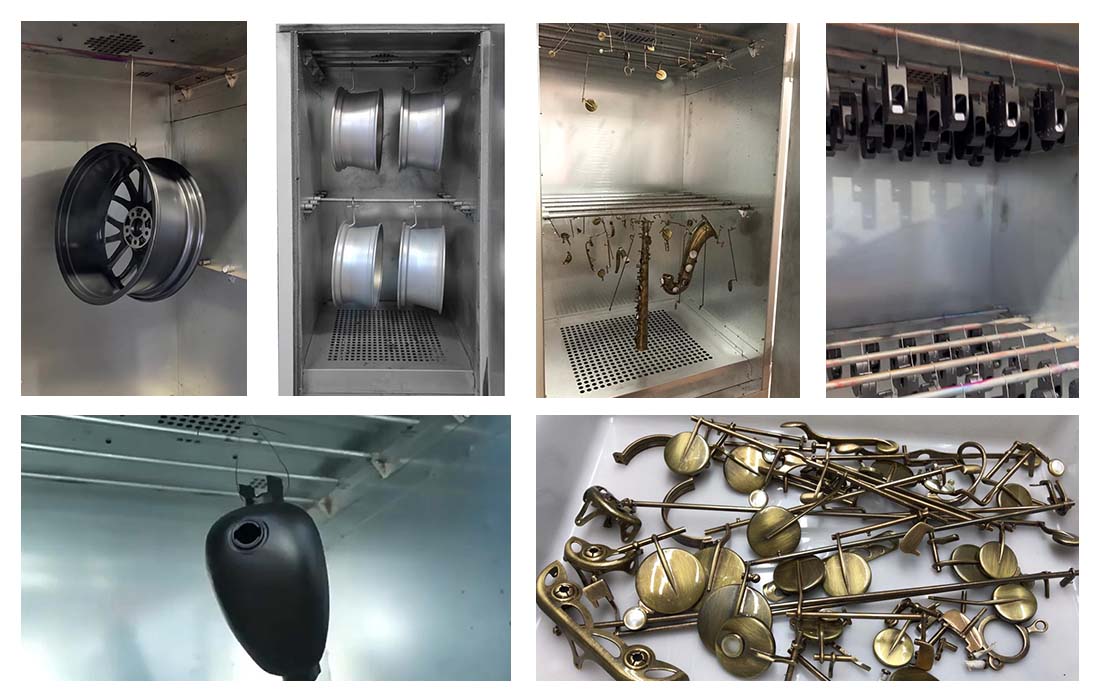

COLO-1688 Powder Coating Oven Applications

COLO-1688 Powder Coating OvenApplication

Factory Direct Sale Powder Coating Guns, COLO - A leading Brand in China

Paypal Available, 1 Year Warranty. 1-3 Working Days Delivery. Door to Door Shipment by Fedex, DHL, Fedex, UPS, etc

You May Also Need Spare Parts

7.A: Can I buy with bulk orders? And any discount?
Q: Yeah! Contact with us pls

8.A: What’s the package and details?
Q: Carton or Wooden case, you can choose, carton is more recommended for the smaller packing size.
Box Feed Type: 70*56*54cm, 45.8KG (1 Carton)
Big Hopper Type: 70*56*54, 34.5KG; 46*46*67, 12KG (Two Cartons)
Small Lab Type: 43*43*56，16kg (1 Carton）

9.Q: Can you provide the parts of the powder coating gun?
A:Yeah! We can supply all spare parts.

10.Q: What’s the Warranty time? Do you have CE?
A: 12 months. Yes, we have CE, ISO, ATEX.

If you have other questions, you can contact us, thank you very much!

FAQ for COLO Products

1.Q: What's your latest new model of powder coating gun?

A: It is the COLO-200S Series, FULL TOUCH CONTROL unit.

2.Q: What's the difference between COLO-200S & COLO-191S
A: Same performance, only that the touch screen of COLO-200S makes it more intuitive to control parameters, and has one-touch function for automatically cleaning spray gun.

3.Q: What is the difference between COLO-191S & KF-X1?
A: All same except the apperance of the control panel, choose as you like, also same price.

5.Q: What is the difference between COLO-800D & COLO-668
A: The only differece is the COLO-668 has one more presettinng, that is pulse-coating function which could be a good help when coating deep corners..

4.Q: What is the difference between COLO-191S & COLO-800D?
A: COLO-191S is more intelligent & digital, the most obvious difference is that the COLO-191S could precisely control powder flow and air flow, moreover all parameters are more easily adjusted in the digital panel. Another difference COLO-191S could customize and save 20 kinds of personalized programs. The 2 model both have 3 pre-sets, including flat-coating, corner-coating, re-coating which are meet most applications.

5.A: Do you supply other powder coating equipment, like booths, ovens, reciprocators, complete lines?
Q: Yes, we do, we have 4000^2 production base, we design, manufacture, complete powder coating system all the time.

If your have further requests, feel free contact with COLO!
