COLO-1517
COLO
Applications

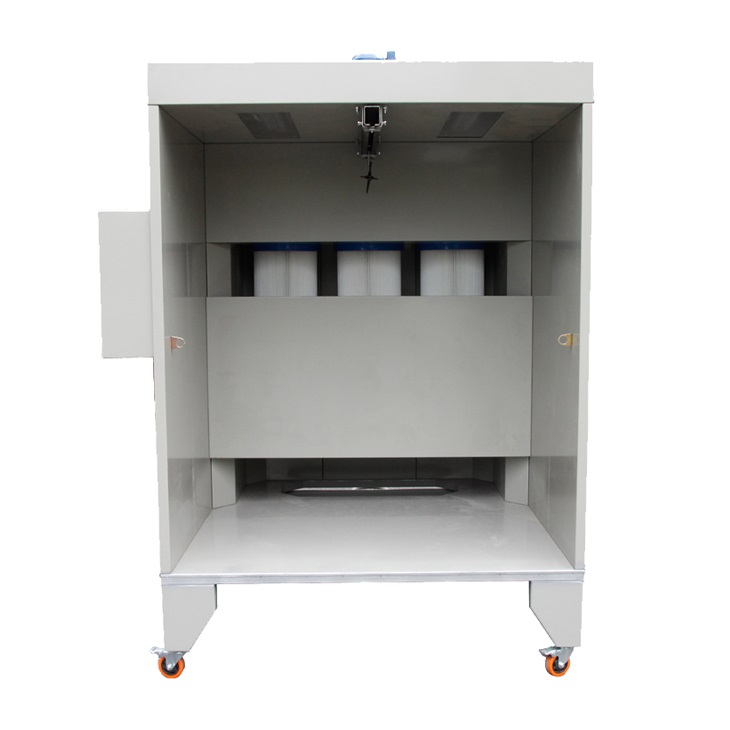

COLO-1517 Powder coating booth provides a bright and clean environment for spraying process. Space-saving manual powder booth features easy and economical for powder application of small and medium-sized workpieces
Configurations
1. High-precision filters ensures only particle-free air discharged to workshop and increase powder recovery rate.
2 A user-friendly PLC panel integrates all functions, such turning on / off fans, setting pulse-jetting time and interval, light on/off, emergency stop etc.
3. Built with energy-saving lights provides bright and precse powder coating jobs.
4. A removable powder hopper at booth bottom simplifies the utilization of recovery powders
5. A high-performance fan efficiently circulate air with low noise and less energy.
6. The filters are intervally cleaned by releasing accumulated powders controlled via solenoid valve, which extends the filters' lifespans.
7. Powder-coated steel constructed booth is corrosion resistant for longer service life.
Model | COLO-S-1517 |
Operating Dimensions | Width1500 * Depth1000 * Heght1700mm |
Overall dimensions | Width1600 * Depth2000 * Heght2250mm |
Weight | 480kg |
Power Supply | 220V/380V, 3Phase, 50-60HZ |
Fan Power | 2.2kw |
Filter Count | 3 pcs, Quick-release Type |
Filter Material | Polyester |
Filter Cleaning | Pneumatic |
Air Consumption | 4000m^3/h |
