COLO-2315
COLO

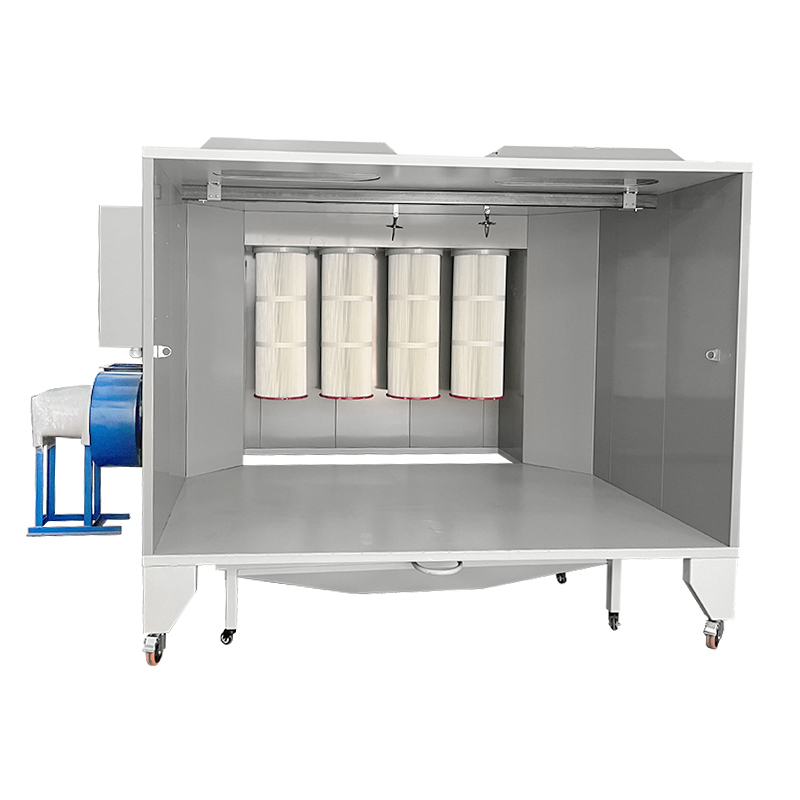

The advanced manual powder coating booth is ideal for small-to-medium-sized batch powder applications, an integrated powder collection module includes high precision cartridge filters along with pulsing cleaning system, creating clean and bright finishing environment.
Configurations
1. Incorporates proven cartridge-filter technology capturing excess powders efficiently to keep environment clean.
2. The filtered powder is discharged into a collecting hopper beneath the unit which can be moved away for emptying.
3. A high-performance 4kw fan efficiently circulate air with low noise and less energy.

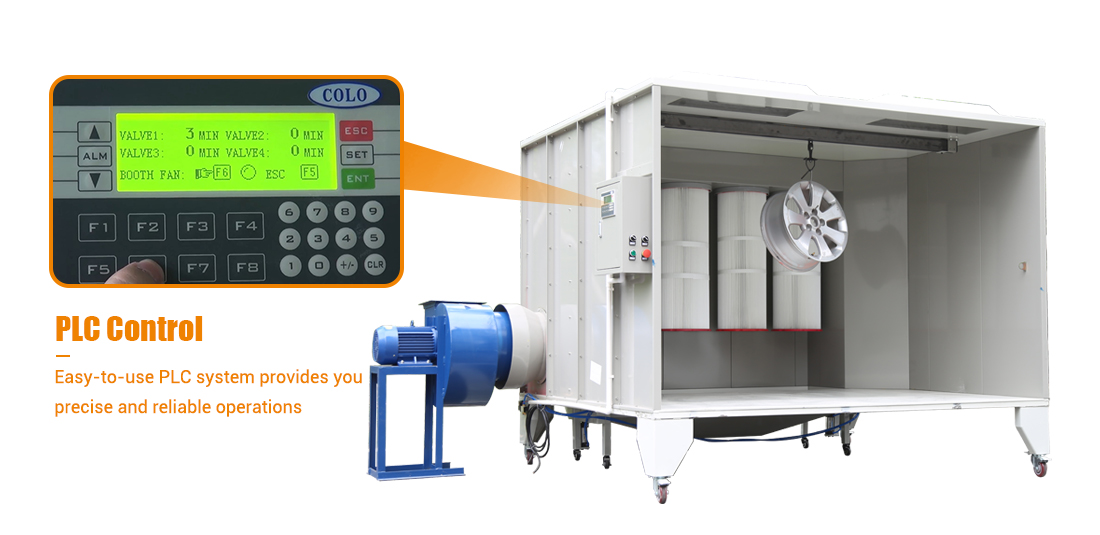

4. Easy-to-use PLC operation panel allows to start/stop exhaust, set pulse-jet time & interval and lift recovery hopper.
5. Designed with wheels perfectly for shops where being able to move the unit is vital.
6. Built-in 2 sets of lights creates bright and precise powder coating condition.
6. Our booth fully constructed with powder-coated steel exceptionally increases stability and durability
| Model | COLO-2315 |
| Operating Dimensions | Width2300 * Depth1500 * Heght1500mm |
| Overall dimensions | Width2550 * Depth2100 * Heght2240mm |
| Weight | 580kg |
| Power Supply | 220V/380V, 3Phase, 50-60HZ |
| Fan Power | 4kw |
| Filter Count | 4 pcs, Quick-release Type |
| Filter Material | Polyester |
| Filter Cleaning | Pneumatic |
| Air Consumption | 6600m^3/h |
