KF-X1-V Box Feed Powder Coating Gun with Mini Hopper KF-X1-V Box Feed Powder Coating Gun with Mini Hopper
KF-X1-V Box Feed Powder Coating Gun with Mini Hopper KF-X1-V Box Feed Powder Coating Gun with Mini Hopper
KF-X1-V Box Feed Powder Coating Gun with Mini Hopper KF-X1-V Box Feed Powder Coating Gun with Mini Hopper
KF-X1-V Box Feed Powder Coating Gun with Mini Hopper KF-X1-V Box Feed Powder Coating Gun with Mini Hopper
KF-X1-V Box Feed Powder Coating Gun with Mini Hopper KF-X1-V Box Feed Powder Coating Gun with Mini Hopper
KF-X1-V Box Feed Powder Coating Gun with Mini Hopper KF-X1-V Box Feed Powder Coating Gun with Mini Hopper

KF-X1-V Box Feed Powder Coating Gun with Mini Hopper

$ 1580  -  1590
5 0 Reviews

With Additional Hopper:
Mini 03 (1 lbs)
Mini 03 (1 lbs)
Mini B (2 lbs)
Mini B (2 lbs)
Mini 02 (10lbs)
Mini 02 (10lbs)
SKU:
Availability:
Quantity:
  • KF-X1-V
  • COLO

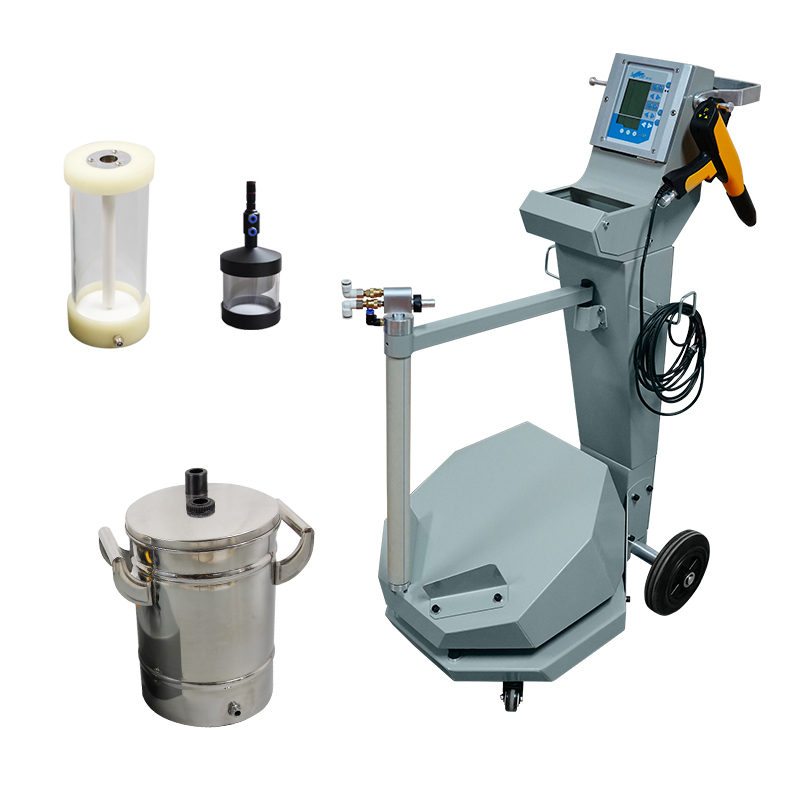

Powder coating gun with mini hopper is the perfect setup for the powder coating shop that handles different types and sizes of jobs on a daily basis.
Box feed model makes color change more easier which greatly improved efficiency.
Additional hoppers are provided for special needs, just switch on the controller with one-touch, you can use it as a hopper feeding powder coating system.

 3 Types of Small Hoppers for Choice
1) Mini 03, Diameter 10 x Height 10cm, Capacity: 1 lb
2) Mini B,   Diameter 10 x Height 20cm, Capacity: 2 lbs
3) Mini 02, Diameter 20 x Height 30cm, Capacity: 10 lbs

Customer Feedback

Product Description

Controller

1. The digital valve control(DVC) technology offers precise adjustment of all processing parameters, extraordinary for repeatable regulations of the powder flow and dosing air.

2. One-touch buttons and the easy-to-use interface makes this machine powerful for everyone.

3. There are 3 pre-set application programs for processing flat parts, profiles and recoating jobs, this function is simple for beginners to use.

4. Additionally, 20 individual coating programmed can be stored and retrieved at any time. This achieves repeatable and outstanding coating results.


Powder Spray Gun

- Built-in 100kv cascade maximizes the electrostatic charging, offers highest transfer efficiency.

- With handy functions of changing powder flow and moving between coating modes just pressing the "P" button at the rear cover.


Powder Coating Hopper

Designed for mini scale powder coating process, It can be easily disassambled for cleaning and color changing. Configured with a fluidizing plate to achieve uniform and smooth powder feeding to ensure coating quality.


Spray Nozzles

- Comes with full array of nozzle assortment for optimal effect , including flat nozzles, round nozzles with a series of deflectors, as well as extension nozzles for better penetration of corners.


Powder Pump

- Delivers more powders to spray guns using less compressed air, achieves efficient material utilization and lower consumption costs.

- A plug-in powder injector that can be detached without any tools, allows fast cleaning and maintenance.


Trolley

- A vibrating motor in the trolley fluidizes the powder, breaks up powder accumulation, removes absorbed moisture, improves powder coating quality.

- The movable trolley makes the powder coating machine easy to transport within the production area.


Grounded Powder Hose

- The grounded powder hose embedded with carbon strips features anti-static, ensures constant and uniform flow.

- This powder hose is easy and quick to clean during color change process.
