COLO-1732
COLO
Excellent Features

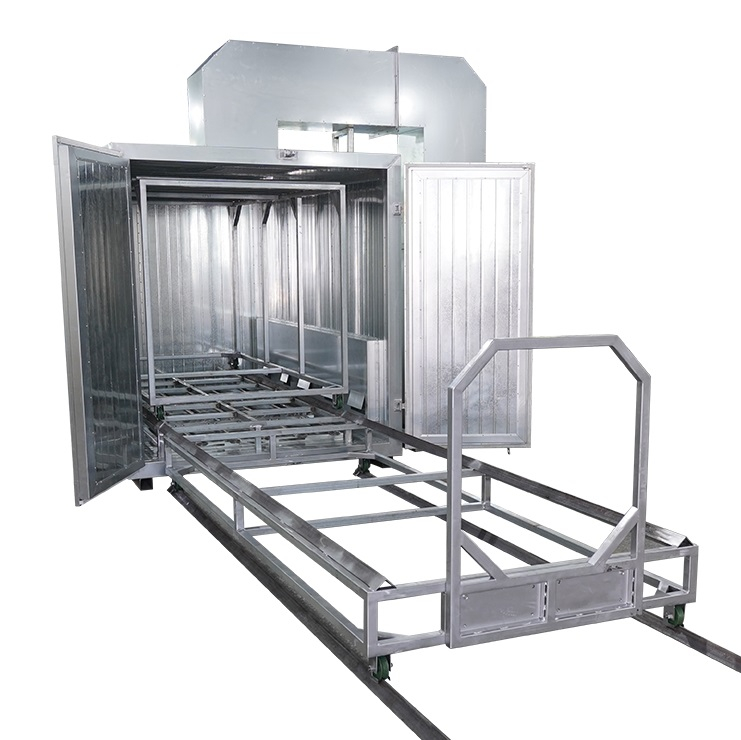

The 3 meter length curing oven is designed for powder coating bigger bulky parts or batch small parts
Electric heating style reduces the task of operation and maintenance as well as creates a more clean environment.
Efficiently raise to the required temperature and always keeps warm, saving time and energy.
The optimal airflow throughout oven enclosure creates an even, constant cure for your parts.
Configurations
1.5kw insulated circulation fan circles the hot air to warm the powder coating oven interior, minimize temperature difference and guarantee uniform-heated chamber.
The PLC control system offers user-friendly interface for users to set the required temperature and heating time accurately.
COLO powder coating oven utilizes a sandwich panel design. Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.
Standardly equipped with two carts: internal one and external one. It is a superior solution that allows batch loading of workparts as well as carrying heavy elements using a small amount of force.
PLC Precise Control

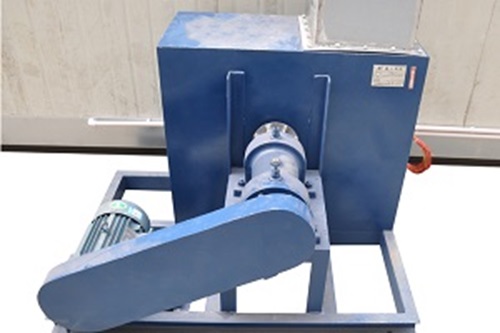

Insulated Circulation fan

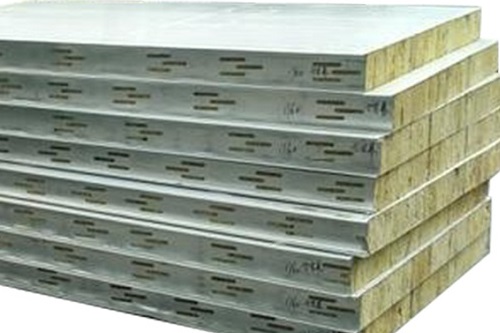

100mm thick rockwool insulation
Internal & External Trolley System
Specifications
| Model | COLO-1732 |
| Worksize dimensions | Width1650 x Height1700 x Depth3200 mm |
| Overall dimensions | Width1950 x Height2100 x Depth3600 mm |
| Power supply Electric | 30kw |
| Voltage | 380V/220v |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 1131-2565m3/h |
| Motor power | 1.5kw |
| Circulation/ Air flow Vertical | Variable through holes on the walls |
| Warranty | 12 months |
