COLO-800D COLO-1517, COLO-1864
COLO

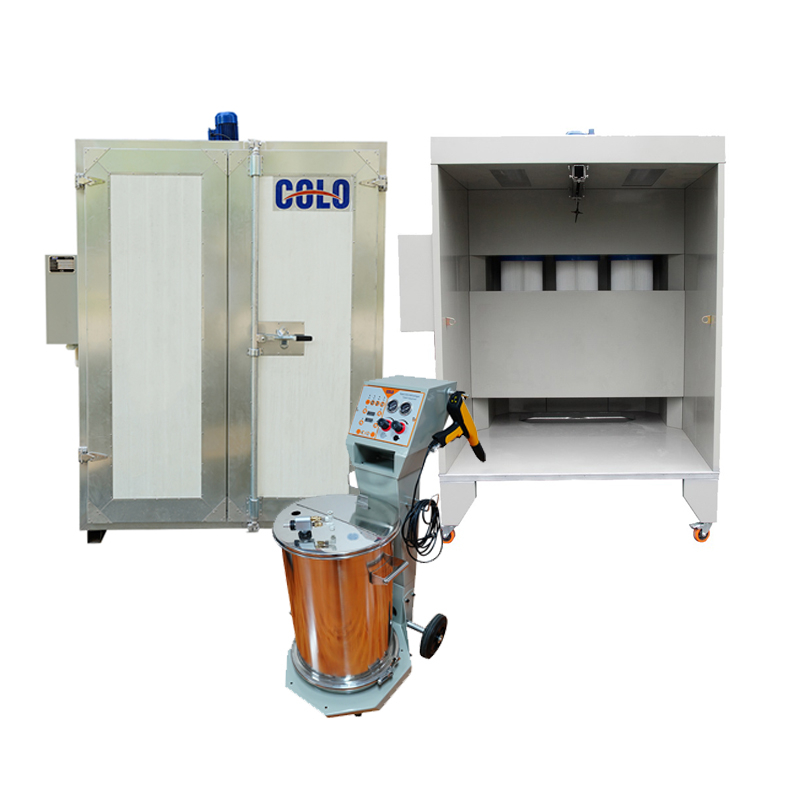

This Powder Coating Equipment Package includes COLO-800D hopper feed powder coating gun, COLO-1517 powder coating booth and COLO-1864 powder coating oven, suitable for small or medium sized workparts production in batches.
1. 0-100kv voltage adjustable by digital, powder output and atomization air regulation by valves
2. Three presetting application programs: panel-coating, corner-coating, re-coating
3 100kv high voltage spray gun with ergonomic design and non-stick materials.
4. Comes with full array of nozzle assortment, including flat, round and extension nozzles.
5. Configured with grounded powder hose features anti-static, ensures constant and uniform flow.
6. 60lbs hopper type suits for constant daily production.
| Model | COLO-S-1517 |
| Operating Dimensions | Width1500 * Depth1000 * Heght1700mm |
| Overall dimensions | Width1600 * Depth2000 * Heght2250mm |
| Weight | 480kg |
| Power Supply | 220V/380V, 3Phase, 50-60HZ |
| Fan Power | 2.2kw |
| Filter Count | 3 pcs, Quick-release Type |
| Filter Material | Polyester |
| Filter Cleaning | Pneumatic |
| Air Consumption | 4000m^3/h |
| Control System | PLC |
| Material | Cold-rolled sheet with powdercoated surface |
| Model | COLO-1864 |
| Working dimensions | Width1600 x Height1800 x Depth1400 mm |
| Overall dimensions | Width1900 x Height2200 x Depth1700 mm |
| Power supply electric | 18kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flowVertical | Variable through holes on the walls |
| Transportation | Trolley (2 sets, internal & external) |
| Control System | PLC |
| Material | 100mm rockwool board as insulation interlayer 1mm galvanized sheet as inner wall 0.7mm durable color-steel as external skin |
