The innovative COLO-668 powder coating gun applies pulse technology that is easy and powerful for handling complex shapes with quality results. Portable set is ideal for small scale production jobs, you can simply clean the hopper during powder color change.
Controller
- 0-100kV adjustable voltage meets different powder coating requirements.
- One-touch intelligent operation buttons control four pre-programmed options, includes, flat parts coating mode, corner coating mode, re-coating mode, pulse coating mode.
- Pulse powder coating repidly recharges the powder for high transfer efficiency to penetrate tough areas, reduces time and material consumption.
Spray Gun
- The High-Voltage corona charge powder gun utilizes state of the art electronic circuitry to deliver up to a full 100 Kilovolts. leading to maximum coverage and adhesion
- Lightweight and perfectly balanced powder spray guns are comfortable for operators.
Spray Nozzles
- Round spray nozzle, fan spray nozzle and extension nozzles are included.
- Greater flexibility to master any coating task.
Powder Pump
- Delivers more powders to spray guns using less compressed air, achieves efficient material utilization and lower consumption costs.
- A plug-in powder injector that can be detached without any tools, allows fast cleaning and maintenance.
Powder Fluidizing Hopper
- Size: D20 x H30 cm, Capacity: 10 lbs powders
- The 10 lbs fluidizing hopper delivers smooth powder flow and is easy cleaning for fast color change demands.
- Powder in this hopper is fully fluidized without powder accumulation and absorbed moisture, optimizes powder preparation for high quality requirements.
The innovative COLO-668 powder coating gun applies pulse technology that is easy and powerful for handling complex shapes with quality results. Portable set is ideal for small scale production jobs, you can simply clean the hopper during powder color change.
Controller
- 0-100kV adjustable voltage meets different powder coating requirements.
- One-touch intelligent operation buttons control four pre-programmed options, includes, flat parts coating mode, corner coating mode, re-coating mode, pulse coating mode.
- Pulse powder coating repidly recharges the powder for high transfer efficiency to penetrate tough areas, reduces time and material consumption.
Spray Gun
- The High-Voltage corona charge powder gun utilizes state of the art electronic circuitry to deliver up to a full 100 Kilovolts. leading to maximum coverage and adhesion
- Lightweight and perfectly balanced powder spray guns are comfortable for operators.
Spray Nozzles
- Round spray nozzle, fan spray nozzle and extension nozzles are included.
- Greater flexibility to master any coating task.
Powder Pump
- Delivers more powders to spray guns using less compressed air, achieves efficient material utilization and lower consumption costs.
- A plug-in powder injector that can be detached without any tools, allows fast cleaning and maintenance.
Powder Fluidizing Hopper
- Size: D20 x H30 cm, Capacity: 10 lbs powders
- The 10 lbs fluidizing hopper delivers smooth powder flow and is easy cleaning for fast color change demands.
- Powder in this hopper is fully fluidized without powder accumulation and absorbed moisture, optimizes powder preparation for high quality requirements.
Electrical data | |
Power range | 220V/110V |
Frequency | 50HZ /60HZ |
Temperature range in use | -10 ℃+50 ℃ |
Powder Gun | |
Gun weight: | 500g |
Rated output voltage | 24VDC |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
Pneumatic data | |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |
Minimum input-air pressure | 4kg/cm |
Maximum water vapor content or compressed air | 1.4g/N m3 |
Maximum oil vapor content of compressed air | 0.1ppm |
Maximum compressed-air consumption | 13.2 m3/h |
Electrical data | |
Power range | 220V/110V |
Frequency | 50HZ /60HZ |
Temperature range in use | -10 ℃+50 ℃ |
Powder Gun | |
Gun weight: | 500g |
Rated output voltage | 24VDC |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
Pneumatic data | |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |
Minimum input-air pressure | 4kg/cm |
Maximum water vapor content or compressed air | 1.4g/N m3 |
Maximum oil vapor content of compressed air | 0.1ppm |
Maximum compressed-air consumption | 13.2 m3/h |

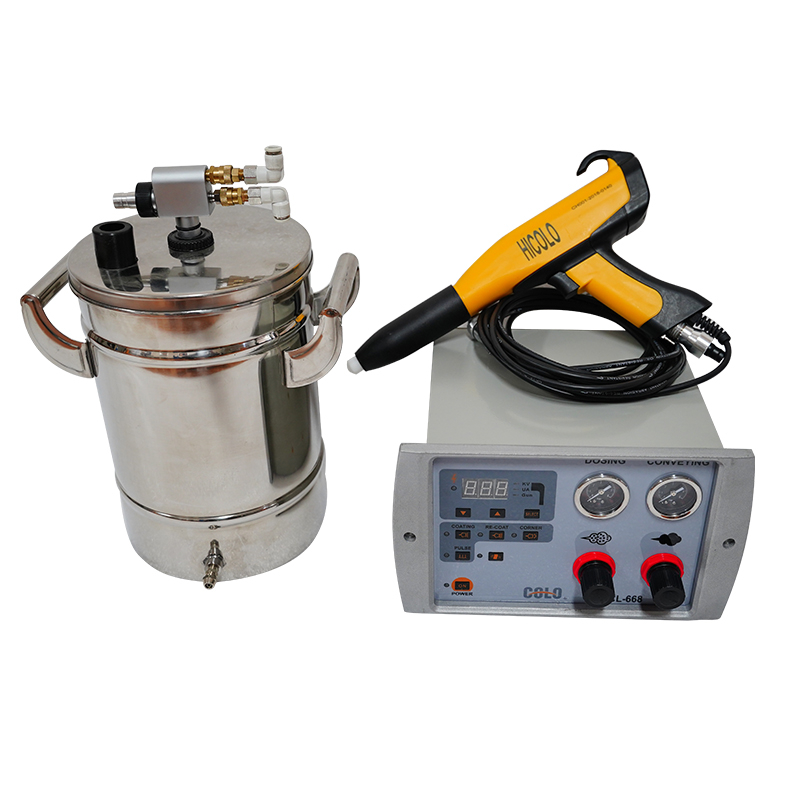

1. COLO-668 Controller
2. COLO-08 manual powder gun with 5m cable.
3. Nozzle assortment, including fan spray nozzles, round nozzles, extension nozzle
4. Fluidizing powder hopper, 2 lbs capacity, allows dismountable.
5. COLO-08 powder injector
6. Powder hose 5 meters
7. Air moisture filter
8. Air pipes
9. Other tools.
Packing Size: 43*43*56cm
Packing Weight: 16kgs
